LT Dry Type Transformer & Reactors/Line Chokes

  • Gallery

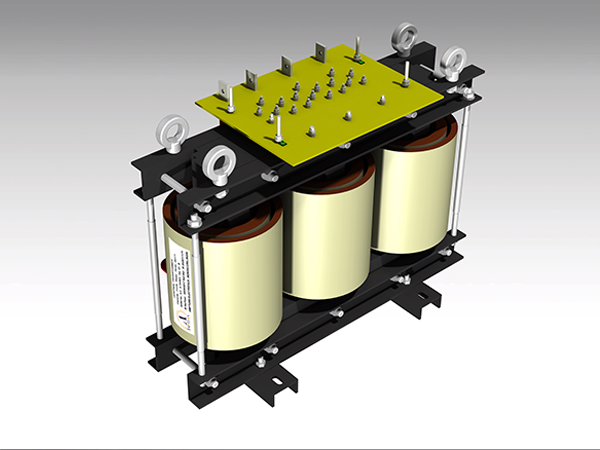

    3PH DRY TYPE TRANSFORMER LV Voltage Transformer
  • Gallery

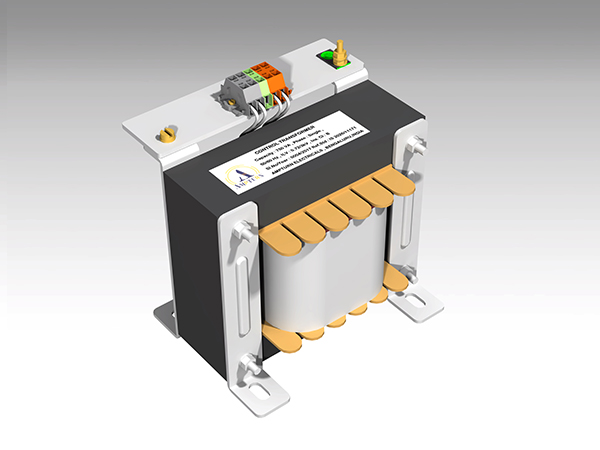

    1PH TAPE INSULATED TRANSFORMERS LV Voltage Transformer
  • Gallery

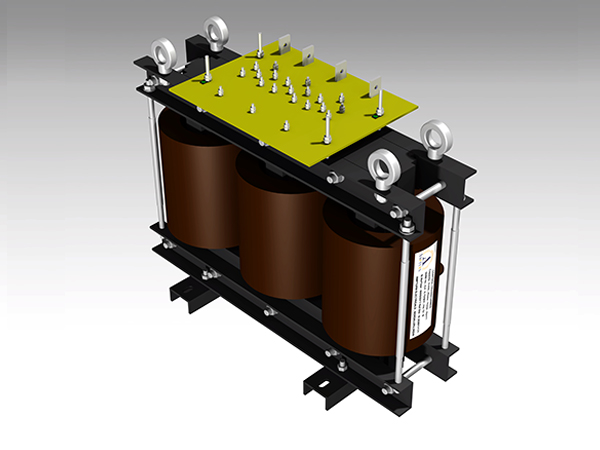

    3PH RESIN CAST TRANSFORMER LV Voltage Transformer
  • Gallery

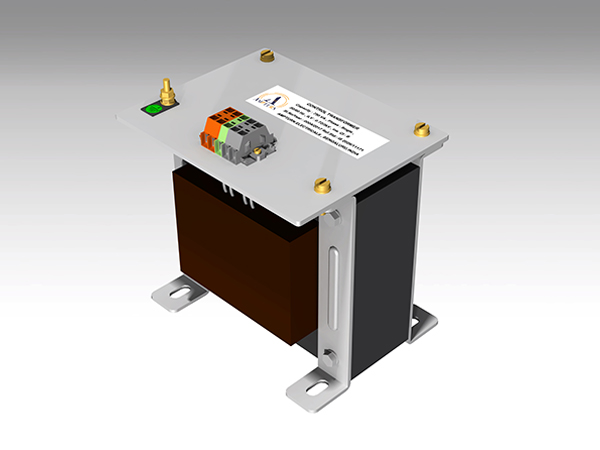

    1PH RESIN CAST TRANSFORMER LV Voltage Transformer

LT Dry Type Transformer

Application : Power, Control Devices & Utilities For both Indoor Purpose.
System Voltage : Up to 1.1kV
Frequency : 50Hz to 400Hz
No. Of Phase : Single Phase, Three Phase& Three Phase to Single Phase
Capacity : Up To 250kVA
Vector Group : As Required By Customer
Type Of Insulation : Vacuum Pressure Impregnated (VPI) Or Resin Cast
Thermal Insulation Class : Class A, Class B, Class F, Class H & Class C
Ambient Temperature : -50 C to +450 C
Enclosure : IP21, IP23, IP32,
Reference Standard : IS12290, IS6297, IS12021, IS2026, IS11171 & IS1180
